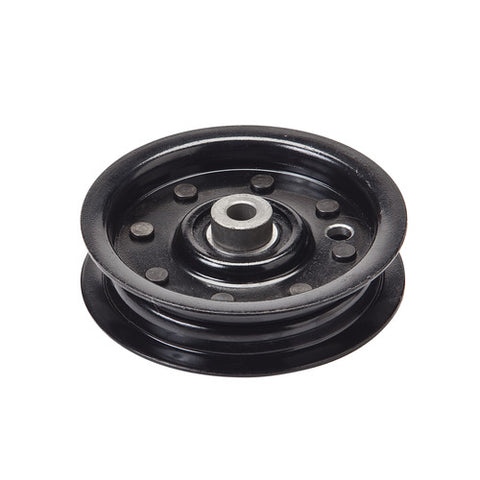

Oregon 78-050 Idler Pulley Replaces MTD 756-0365

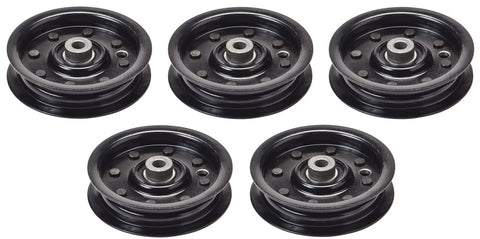

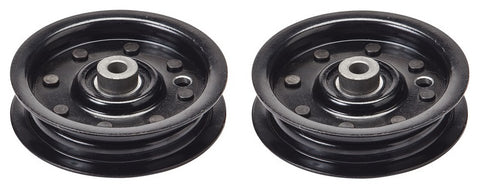

Pack
$23.99

Oregon 78-050 Idler Pulley Replaces MTD 756-0365

Pulleys work hard to transfer power from a mower's engine to its cutting blades, but an Oregon® pulley makes it work harder faster.

PRODUCT DETAILS

  • Outer Dimension: 4-1/8"
  • Flat Outer Dimension: 3-1/2"
  • Flat Width: 7/8"
  • Overall Width: 1-1/16"
  • Bore: 3/8"
  • Offset: 3/32"
  • Replaces: MTD 756-0365, MTD 956-0635



SPECIFICATIONS, DETAILS & SUPPORT

Pulleys and Idlers
Outer Diameter 4-1/8"
Flat Outer Diameter 3-1/2"
Flat Width 7/8"
Bore 3/8"
Offset 3/32"
Type Steel

General
Volume 51.52 in³
Product UOM Each
Weight (with Packaging) 0.9 Lb
Product Width 1-1/16"



Fit Guide

MTD
130-800-000, 130-800H000, 130-800H009, 130-800H014, 130-800H031, 130-800H032, 130-800H034, 130-800H045, 130-800H046, 130-800H087, 130-800H129, 130-800H134, 130-800H137, 130-800H157, 130-800H192, 130-800H205, 130-800H305, 130-800H327, 130-801-000, 130-802-000, 130-802H206, 130-803-000, 130-803H000, 130-803H103, 130-803H105, 130-804-000, 130-805-000, 130-806-000, 130-807-000, 130-808-000, 130-808H000, 130-808H054, 130-809-000, 130-809H000, 130-809H033, 130-809H095, 130-809H145, 130-809H205, 130-809H206, 130-826H190, 131-800H000, 131-800H031, 131-800H034, 131-800H045, 131-800H046, 131-800H087, 131-800H095, 131-800H130, 131-800H134, 131-800H137, 131-800H143, 131-800H192, 131-800H305, 131-800H352, 131-800h205, 131-801H000, 131-804H000, 131-805H000, 131-806H000, 131-807H000, 131-808H000, 131-809H000, 131-809H033, 131-809H103, 131-826H190, 132-800H000, 132-800H002, 132-800H027, 132-800H031, 132-800H032, 132-800H045, 132-800H087, 132-800H088, 132-800H130, 132-800H136, 132-800H137, 132-800H157, 132-800H192, 132-800H196, 132-800H205, 132-800H316, 132-800H352, 132-800H701, 132-800H736, 132-808H372, 132-809H000, 132-809H016, 132-809H033, 132-809H034, 132-809H101, 132-809H103, 132-809H314, 132-809H331, 132-820H205, 132-836H190, 135-704-000, 135-704-009, 135-704-033, 135-704-049, 135-704-190, 135-705-000, 135-705-026, 135-705-036, 135-705-096, 135-714-000, 135-714-009, 135-714-065, 135-715-000, 136-704-190, 137-686-190, 138-686-190, 139-756-190, 139-786-190, 140-820-000, 140-821-000, 140-822-000, 140-823-000, 140-824-000, 140-825-000, 140-826-000, 140-827-000, 140-828-000, 140-829-000, 140-830-000, 140-831-000, 140-833-000, 140-834-000, 140-835-000, 140-836-000, 140-837-000, 140-838-000, 140-839-000, 140-840-000, 140-840H000, 140-840H013, 140-840H050, 140-840H098, 140-840H133, 140-840H141, 140-840H170, 140-840H192, 140-840H205, 140-840H327, 140-841-000, 140-842-000, 140-843-000, 140-844-000, 140-844H000, 140-844H019, 140-845-000, 140-846-000, 140-846H190, 140-847-000, 140-848-000, 140-848H000, 140-848H046, 140-848H054, 140-848H062, 140-848H206, 140-848H372, 140-849-000, 140-849H000, 140-849H023, 140-849H095, 140-849H205, 141-810H000, 141-811H000, 141-812H000, 141-813H000, 141-814H000, 141-815H000, 141-816H000, 141-817H000, 141-818H000, 141-819H000, 141-820H000, 141-821H000, 141-822H000, 141-823H000, 141-824H000, 141-825H000, 141-826H000, 141-827H000, 141-828H000, 141-829H000, 141-830H000, 141-831H000, 141-832H000, 141-833H000, 141-834H000, 141-835H000, 141-836H000, 141-837H000, 141-838H000, 141-839H000, 141-840H000, 141-840H013, 141-840H031, 141-840H046, 141-840H130, 141-840H137, 141-840H192, 141-840h205, 141-841H000, 141-842H000, 141-843H000, 141-844H000, 141-845H000, 141-846H000, 141-846H190, 141-847H000, 141-848H000, 141-848H019, 141-848H054, 141-848H062, 141-848H095, 141-848H098, 141-848H118, 141-848H130, 141-848H143, 141-848H372, 141-848h206, 141-849H000, 141-849H019, 141-849H105, 141-849h205, 142-840H000, 142-840H002, 142-840H013, 142-840H023, 142-840H027, 142-840H031, 142-840H032, 142-840H102, 142-840H115, 142-840H137, 142-840H141, 142-840H147, 142-840H192, 142-840H305, 142-846H095, 142-848H009, 142-848H062, 142-848H105, 142-848H118, 142-848H130, 142-848H147, 142-848H205, 142-849H000, 142-849H019, 142-849H054, 142-849H095, 142-849H105, 142-849H205, 142-849H331, 142-856H190, 148-806-000, 149-816-190, 190-803-000, 190-806-000, 190-806-190, 190-832-000, 190-844-000, 190-846-000, 190-846-190, 190-931-000, 190-931-190, 190-935-000, 190-935-190, 195-931-000, 195-931-190, 195-935-000, 195-935-190, 196-803-000, 196-931-000, 196-935-000, 223-8541-00
